Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

Product Categories

Dongguan Longxingjian Intelligent Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

Name: Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine
Brand: Longxingsheng
Price: 1 USD

Wholesale Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from china suppliers

Brand Name : Longxingsheng

Model Number : LS-300B

Certification : CE, ISO9000

Place of Origin : China

MOQ : 1

Supply Ability : 10-20 set per month

Delivery Time : 30-60 days

Packaging Details : wooden case

Type : LS-300B

Packaging Type : Film, case

Condition : New

Key Selling Points : Long Service Life

Efficiency : Single Forming Station

Marketing Type : New Product 2022

Contact Now

01:02

01:29

Product Description

Full Automatic Visual Position Candies Mobile Phone Earphone Rigid Box Packaging Machine

Product Name	Automatic High Speed Rigid Box Making Machine LS-300B
Material	Stainless Steel
Function	High Speed & High Accuracy Positioning

Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

Product performance description
*High Speed, Suitable for big orders.especially for the orders which are more than 50,000 pcs at one time for the same size,because one line can make around 14000 pcs/ day. Better service for long-term and stable orders

Working range of LS-300B


Product Parameters

Box size(max)	400300100 mm
Box size(min)	806015 mm
Working speed	15-35 Pcs/min
Paper size(max)	800*600 mm
Paper size(min)	135*100 mm
Cardboard size(max)	760*560 mm
Cardboard size(min)	120*100 mm
Motor power	8 kw
Heating power	14kw/380 3phase
Paper stacking height	450mm/100kg
Machine weight	5100 kg
Machine dimension	660038003000 mm

Quickly job setting .No need to change air pressing plate .
  No need to change tuck in blade .
  No need to move camera for size changing, quick job changing
  Storage(memory) function for sizes setting

Details Images

.Whole machine require working in stable working environment.

*Mitsubishi servo motor .
  *.Panasonic PLC*. Servo motor feeding system


*.Anti-leaking gluing system

*.Storage function for the positioning part, easy to adjustment.*.YAMAHA Robotic arm

*.Double Germany cameras (1000 pixels)

*Second pressing device

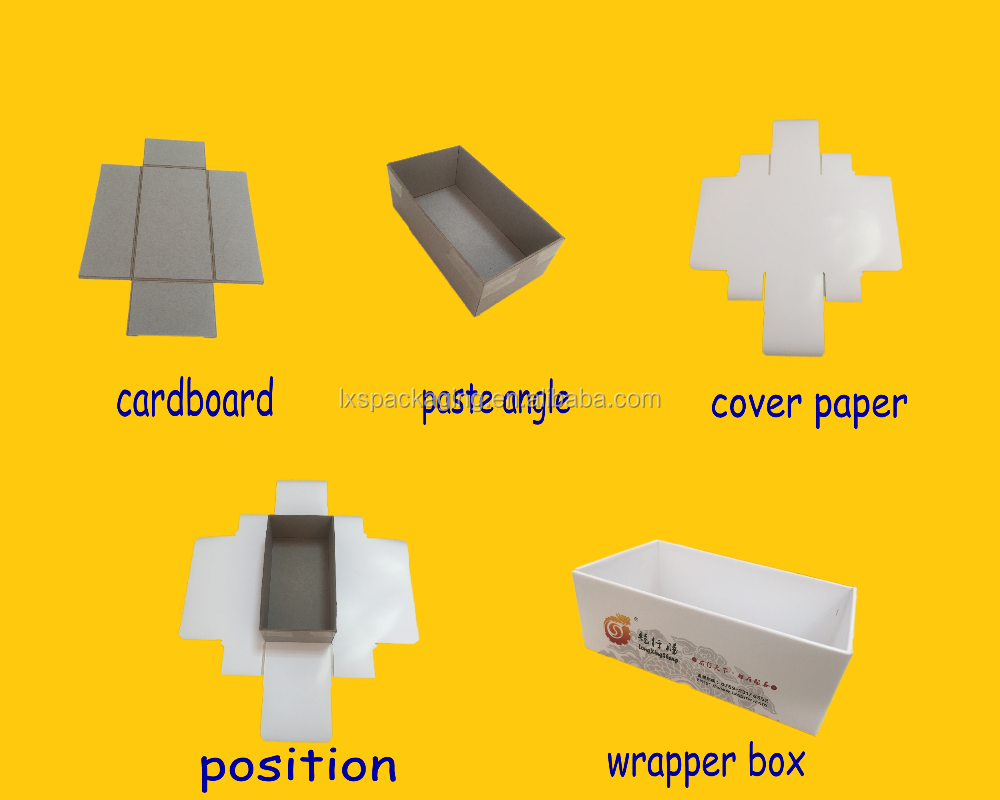

Box forming parts

Our Advantages

Our Products are built with very strong materials and high configuration, even under high- speed running, machine will not shake. this is a suitable machine for all kinds of rigid boxes, it is an ideal solution for both long run and short run orders because of the easy setting and big size range.

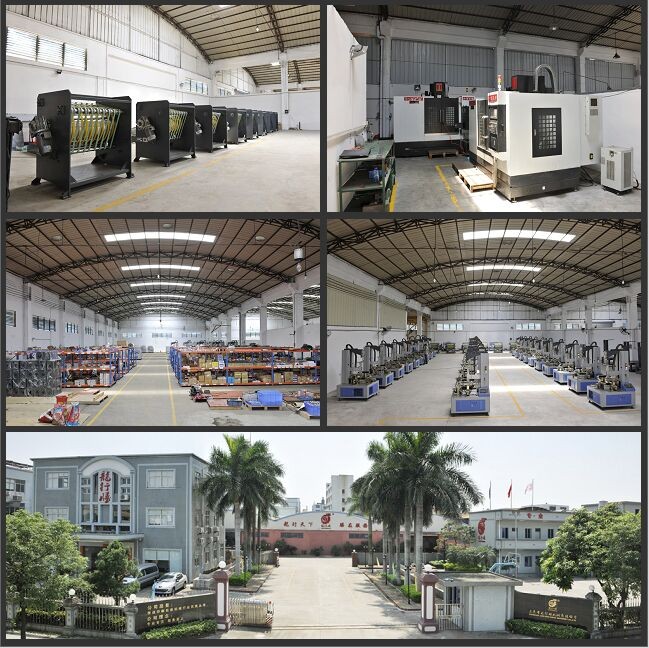

Company Introduction

DONGGUAN LONGXINGSHENG MACHINERY CO.,LTD
  Longxingsheng machinery is a professional packaging machinery manufacturer with 16 years’ experience, we focus on Fully automatic rigid box making machine and rigid box related equipment such as grooving machine, corner pasting machine and positioning machine,our company vision of all time is to simplify box making, we apply our newest technology in building user- friendly machines, we simplify each step of setting in our equipment, just to provide stable and easy-operating machinery solutions to our users around the world.We have built good and long-term cooperation with several world-famous companies. Our market has been expanded all over the world.

Out Services

Pre-sale service.
* Inquiry and consulting support.* Sample testing support.
  * Factory visit.
  * Order confirmation.

After-sale service.
  * Machine installation and training in customer factory. * Engineers available to service machinery overseas.
  * On-line technology support.
  * Free machine parts replacement during warranty.
  * Whole life of machine service.

Packing&Shipping

FAQ

1.What is LXS company machine warranty?

----1 year warranty including free machine parts replacement ( consumables are notincluded).

  2.Does your machine with CE certificate?

----Yes.We have CE ,ISO9001 .

  3.What is the production time while placing order?

---- Within 7-30 workdays.

  4.Do you have stock product to sell?

----Normally we do,it depends on which models you inquired .
